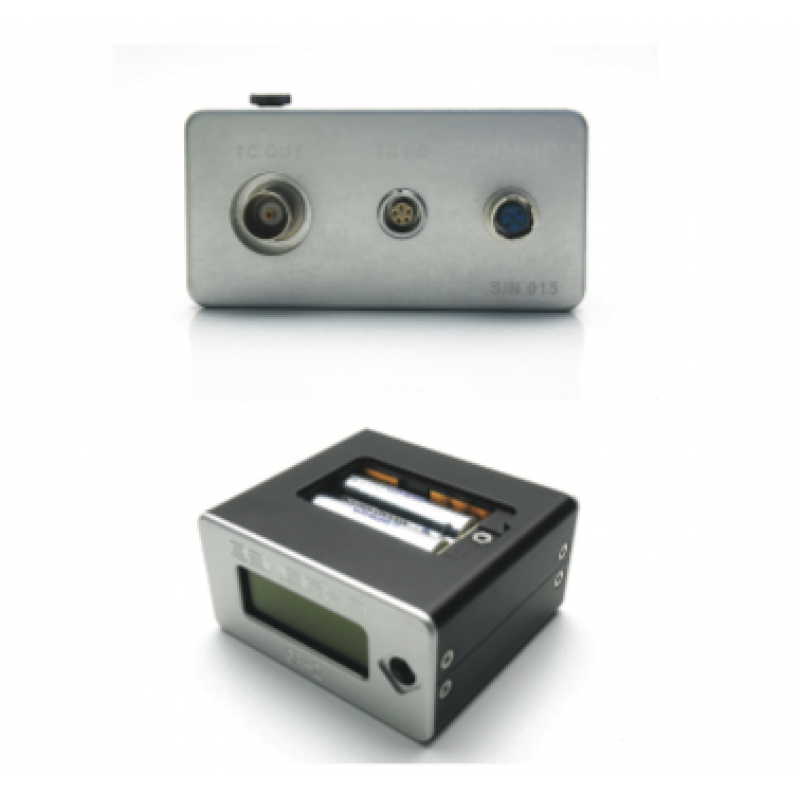

The GR-2 is a precision time code generator/reader designed for production sound recording. Low power consumption with back lighting assures users of long battery life in a small reliable package.

FEATURES

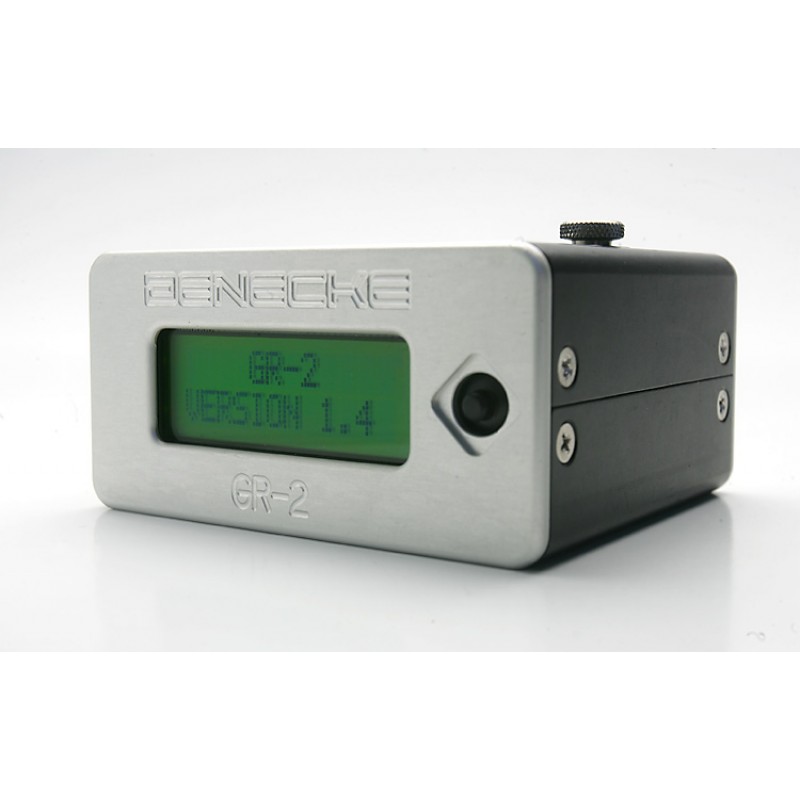

DISPLAY: The display is a two-line, 12 digit low power LCD module that shows timecode/user bits, mode and rate. The user can turn the backlight on or off.

GEN: Generate timecode at 23.976, 24, 25, 29.97, 30 drop and non-drop.

CLOCK: Internal clock time (24 Hr), date (Day\Month, Month\Day). The internal clock is used to set the timecode clock at turn on.

READ: Reads SMPTE/EBU timecode at normal operating speeds. Displays timecode, user bits, and frame rate.

JAM: Jam syncs to external code and can cross jam different code rates. In JC mode, any break in code will jam to a new value.

GU: Inserts externally read timecode in to the user bits of the current internal time code. This is useful for music playback with live action recording.

DELTA: Displays a comparison of the internal timecode to external timecode.

HOLD: Ability to hold the timecode display. The timecode clock and output do not stop while in hold mode.
