The perfect solution for film-makers on large sets, operating up to 32 channels in parallel. The amazing bandwidth of up to 88 MHz and the increased RF output power ensure highest safety, no matter the conditions.

• Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
Includes

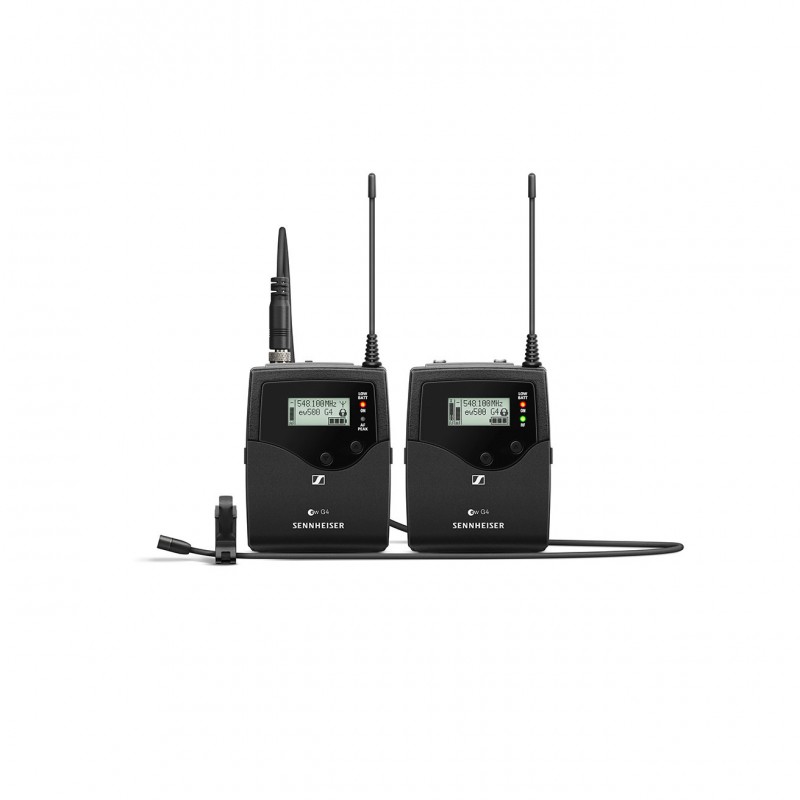

• EK 500 G4 camera receiver
• SK 500 G4 bodypack transmitter

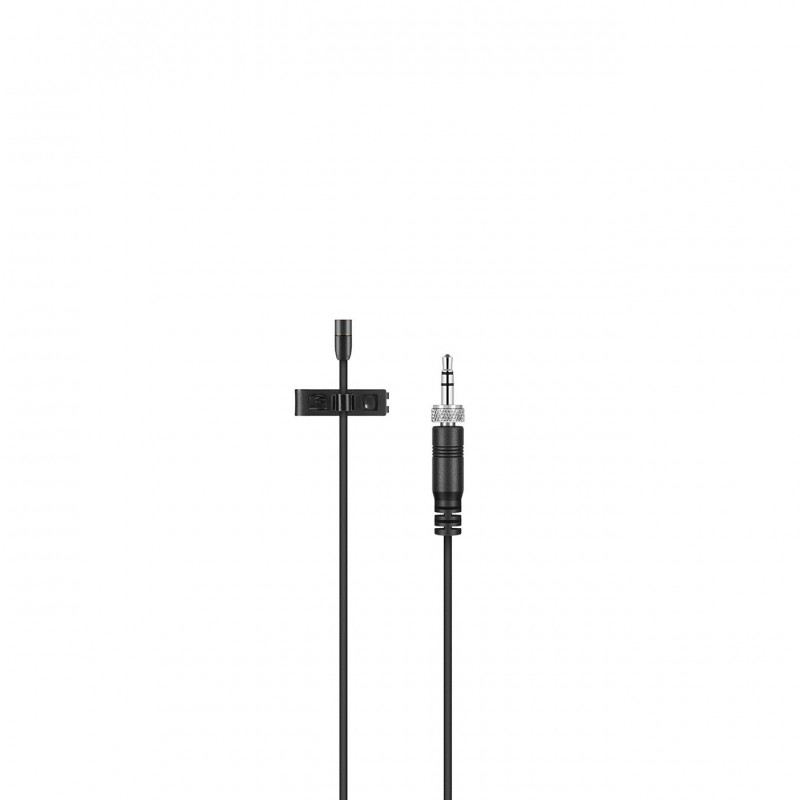

• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• Fur windscreen for MKE 2
• Quick guide
• Safety guide
• Manufacturer declaration sheet

Specifications
Specifications	requency range AS: 520 - 558 MHz Aw+: 470 - 558 MHz Bw: 626 - 698 MHz Cw: 718 - 790 MHz Dw: 790 - 865 MHz GBw: 606 - 678 MHz Gw: 558 - 626 MHz Gw1: 558 - 608 MHz JB: 806 - 810 MHz K+: 925 - 937,5 MHz Bw: 626 - 698 MHz Cw: 718 - 790 MHz Dimensions Approx. 82 x 64 x 24 mm Compander Sennheiser HDX THD, total harmonic distortion ≤ 0.9 % Weight (incl. batteries) approx. 130 g Audio output 3.5 mm jack socket: +17 dBu (mono, balanced) Signal-to-noise ratio Line: ≥ 110 dBA, Phones: approx. 90 dBA Switching bandwidth up to 88 MHz Peak deviation ±48 kHz Nominal deviation ±24 kHz Operating time Typically 8 h Modulation Wideband FM Power supply 2 AA batteries, 1.5 V or BA 2015 accupack Current consumption at nominal voltage: typ. 140 mA with receiver switched off: ≤ 25 µA Adjacent channel rejection Typically ≥ 65 dB Intermodulation attenuation Typically ≥ 65 dB Powering 3 V battery / 2.4 V rechargeable battery Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels RF sensitivity < 1.6 μV for 52 dBA eff S/N Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV Temperature Range -10 °C to +55 °C Receiver Principle Adaptive diversity Blocking ≥ 70 dB

Specifications

Specifications

requency range
AS: 520 - 558 MHz
Aw+: 470 - 558 MHz
Bw: 626 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
GBw: 606 - 678 MHz
Gw: 558 - 626 MHz
Gw1: 558 - 608 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Bw: 626 - 698 MHz
Cw: 718 - 790 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 130 g
Audio output
3.5 mm jack socket: +17 dBu (mono, balanced)
Signal-to-noise ratio
Line: ≥ 110 dBA, Phones: approx. 90 dBA
Switching bandwidth
up to 88 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection
Typically ≥ 65 dB
Intermodulation attenuation
Typically ≥ 65 dB
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity
< 1.6 μV for 52 dBA eff S/N
Squelch
low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range
-10 °C to +55 °C
Receiver Principle
Adaptive diversity
Blocking
≥ 70 dB
