DESIGN
The IFB300 is a ZaxNet™ transmitter that sends high-quality, fully encrypted IFB audio, timecode, and remote control commands to Zaxcom Digital Recording Wireless transmitters and ERX receivers. The signals are carried on a single RF channel ocer 2.4 GHz which can be used license-free in almost any country.

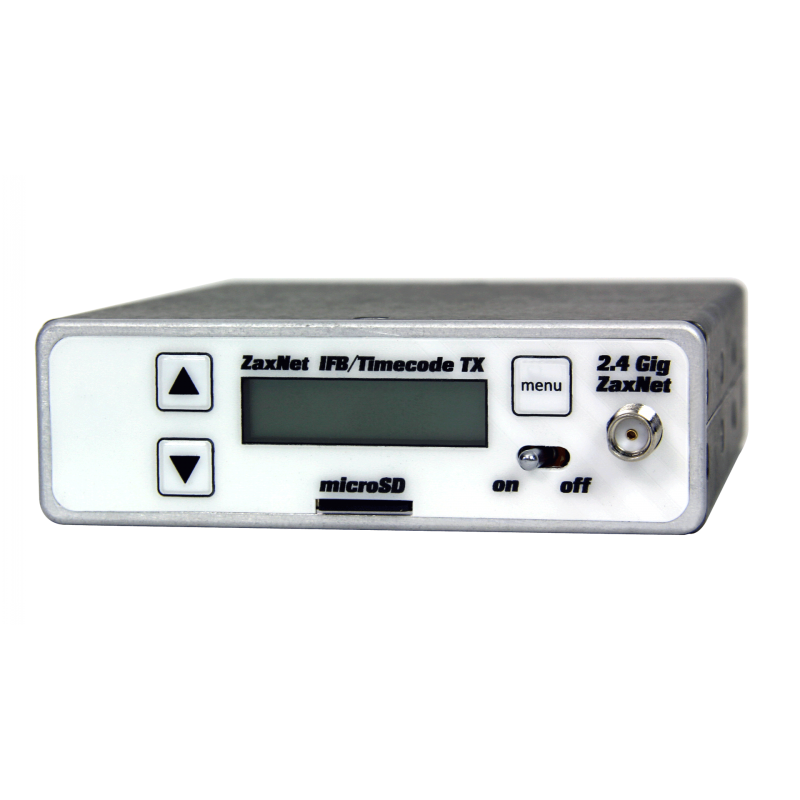

Weighing 7.3 oz, it’s constructed from an impact-resistant metal casing that’s cool to the touch. A bright OLED display provides easy menu navigation.
CONNECTIVITY

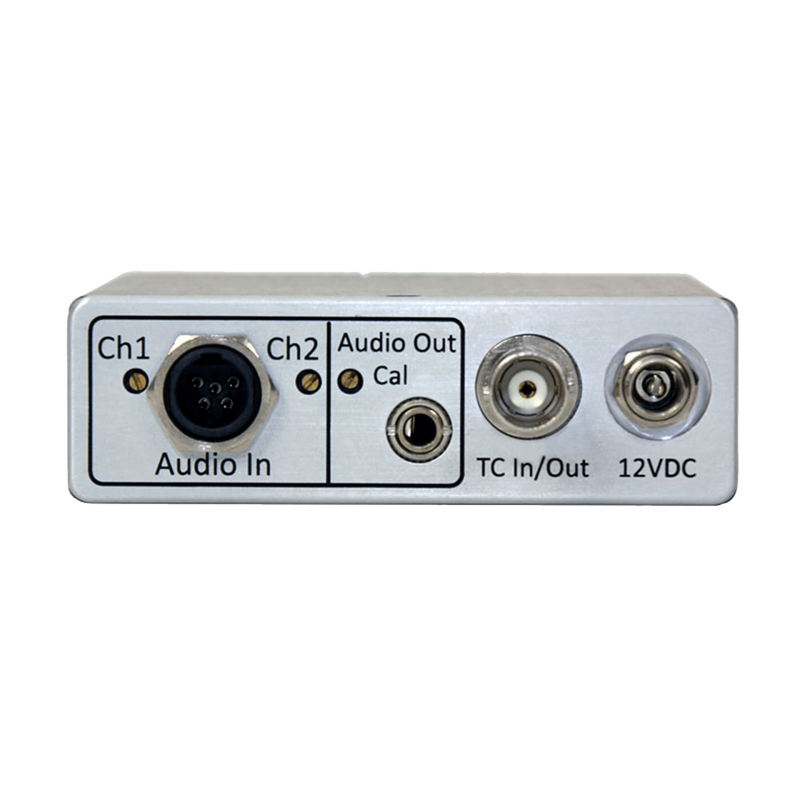

The TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode in.
New on the IFB300 is an RS422 port for direct connection to the Zaxom GUI Bridge so you can easily setup URX50/100 and remote control your wireless via any device that can access the internet.
ENCRYPTED AUDIO
The IFB300 transmits using 100% digital modulation and audio is fully encrypted to keep transmissions private.
INtERNAL RECORDING
Audio can be simultaneously transmitted and internally recorded to a microSD card using MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to loss of power or early card removal.
THE ULTIMATE FLEXIBILITY
The IFB300 and ZGB combo gives you the ultimate remote control in the palm of your hand. You can remotely chance frequency, input level gain, output power levels, and record status right from the palm of your hand!
Specifications | |
Capacity | SPECIFICATIONS IFB RF Transmitter RF Power Output 75 mW RF Modulation Digital Spread Spectrum RF Frequency Range 2.403 to 2.475 GHz RF Frequency Step 0.001 GHz (1 MHz) RF Bandwidth 1 MHz Channel Separation 2 MHz Antenna Connector 50-ohm SMA Female Emission Designator 180 KV2E FCC Part CFR Title 47, Part 15 IFB Audio Transmitter Dynamic Range 103 dB Distortion 0.01% Frequency Response 20 Hz to 12 kHz Highpass Filter Off or 30 to 220 Hz, Step System Group Delay 10 ms IFB Analog or Digital Audio Input Connector TA-5M Type Balanced Level -10 dBu tp +4 dBu Impedance 10 k Ω ADC Bit-depth 24 bits ADC Sampling Rate 48 kHz Timecode I/O Connector BNC Input Level Range 1 to 5V, P-P Output level 2V P-P Impedance 75 Ω Timecode Reader/Generator Clock Accuracy 1.54 PPM (1 frame out in 6 hours) Timecode Type SMPTE Timecode Frame Rates 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF Physical Weight 7.3 oz Dimensions 3.6″ x 3.23″ x 1.0″ External Power 8 to 18 VDC @ 180 mA Internal Power N/A Display Graphic LCD Panel |
