*If interested in product, please call 1(818) 566-6526 for availability
Included Item(s):

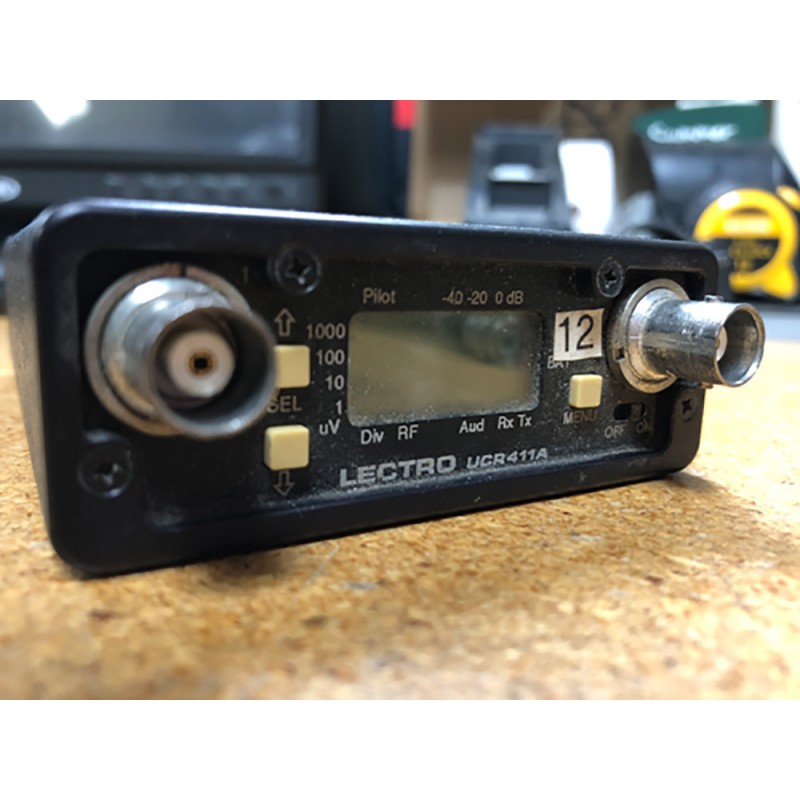

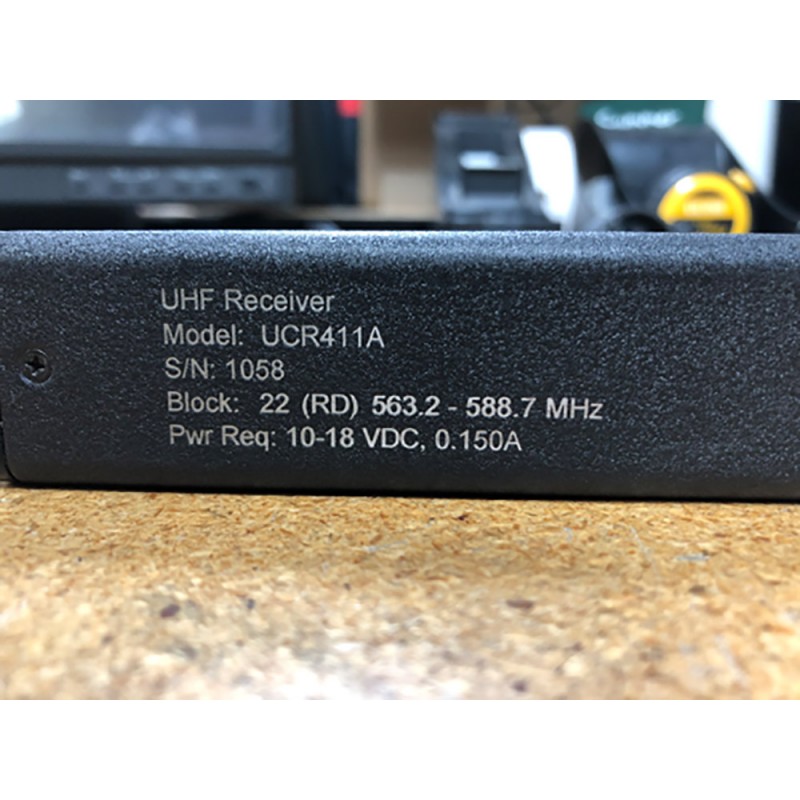

- Lectrosonics UCR411A (Block 22/563.2-588.7 MHz)
- 2x BNC Antenna
| Specifications | |

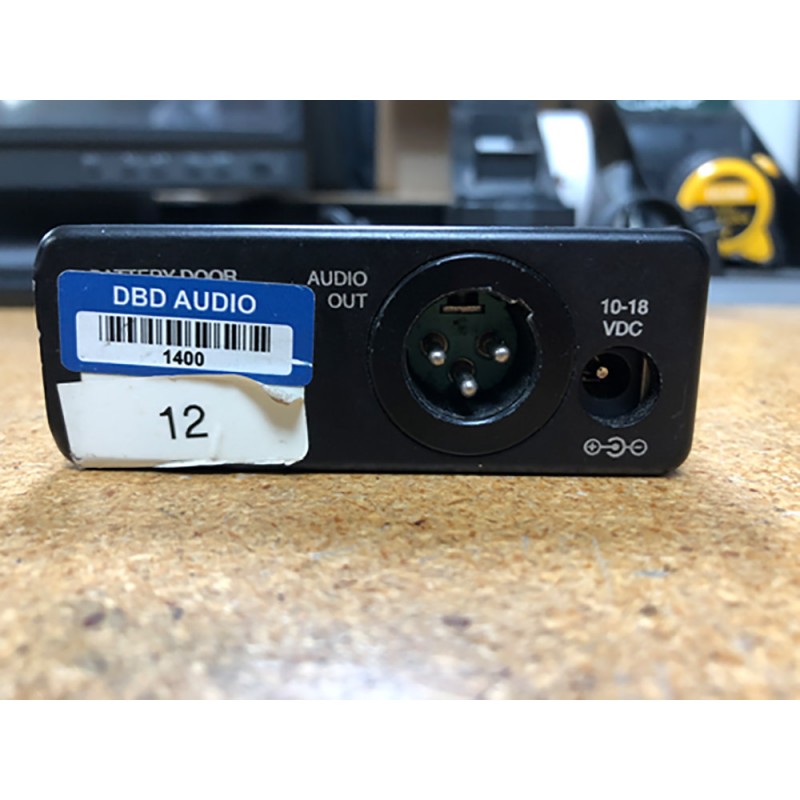

| Capacity | Specifications Frequency Adjustment Range: 25.5 MHz in 100 kHz steps Receiver Type: Triple conversion; superhet IF frequencies: 244 MHz, 10.7 MHz and 300 kHz Frequency Stability: ±0.001 % Front end bandwidth: ±5.5 MHz, @ -3 dB Sensitivity: 20 dB Sinad: 0.9 uV (-108 dBm), A weighted 60 dB Quieting: 1.12 uV (-105 dBm), A weighted AM rejection: >60 dB, 2 uV to 1 Volt Modulation acceptance: 85 kHz Image and spurious rejection: 85 dB Third order intercept: +8 dBm Diversity method: Phased antenna SmartDiversityTM FM Detector: Digital pulse counting detector operating at 300 kHz Antenna inputs: Dual BNC female jacks; 50 Ohm impedance Audio output: Rear panel XLR connector; can drive 600 Ohm, adjustable from -50 to +5 dBu in 1 dB steps (into nominal 10 k bal. load) Audio Performance (overall system): (These audio performance specs apply only to 400 Series compatibility mode.) Frequency Response: 32 Hz to 20 kHz (+/-1 dB) THD: 0.2% (typical) Input Dynamic Range: 125 dB (with full Tx limiting) Overall Latency (time delay): 3mS Audio Test Tone: 1 KHz, -50 to +5 dBu, <1%THD Front Panel Controls and Indicators: • LCD display • Menu - up/down buttons • Power switch Rear Panel Features: • XLR audio output jack • External DC input • Battery compartment External Power: Minumum 10 Volts to maximum 18 VDC 1.6 W; 170 mA at 12 VDC Battery Life: 6 to 8 hrs. continuous, w/ two alkaline 9 V batteries; up to 20 hrs. continuous w/ two lithium 9 V batteries Weight: 15.2 ozs. (with two alkaline 9V batteries) Dimensions: 3.23” wide x 1.23” high x 4.75” deep |
Tags: Lectrosonics, UCR411A
