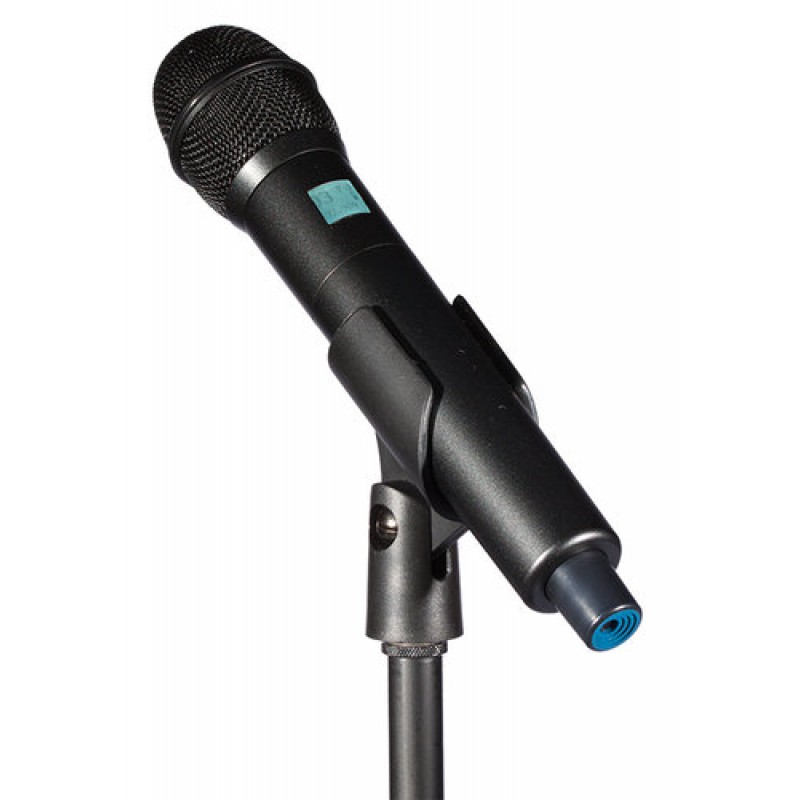

  • Lectrosonics - HHa Wireless Handheld Microphone

Features

  • Up to 76 MHz tuning range in 25 or 100 kHz steps (bands A1, B1)
  • 941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps
  • Digital Hybrid Wireless® Technology
  • Standard thread-on capsules
  • Membrane switch and LCD interface
  • AA battery power
  • Selectable RF power at 10 (export only), 25, 50 (export only) and 100 mW
  • Talkback feature
  • IR (Infrared) Port for fast setup
  • Capsule sold separately

The HHa Digital Hybrid Wireless handheld transmitter represents an elegant solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The HHa incorporates many advanced features to provide high-quality speech and vocal reinforcement. Along with providing peerless audio quality with wide frequency response and dynamic range in 400 Series and Nu Hybrid Modes, the technology used in the HHa includes compatibility modes for Lectrosonics 200 Series, 100 Series, Mode 3, IFB receivers and some systems from other top manufacturers. Newer Digital Hybrid transmitters only have NUHYB, IFB and Mode 3

Included Accessories

  • 1 - CCHH Zippered pouch
  • 1 - 13585 mic clip
  • 1 - P1298 anti-roll sleeve
  • 2 - AA Batteries

Compatible Capsules

Lectrosonics offers the HHC cardioid condenser capsule. Thread-on capsules from other manufacturers using a 1.25” opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure®, Heil SoundTM, Telefunken® and others.*

Lectrosonics

  • HHC cardioid condenser element
  • HHVMC cardioid condenser element with VariMic™ tone controls

Shure®

  • RPW110 capsule head with PG58 silver dynamic element
  • RPW112 capsule head with SM58 silver dynamic element
  • RPW114 capsule head with SM86 silver condenser element
  • RPW116 capsule head with SM87A black condenser element
  • RPW118 capsule head with Beta 58A dynamic element
  • RPW120 capsule head with Beta 87A silver condenser element
  • RPW122 capsule head with Beta 87C silver condenser element
  • RPW124 capsule head with VP68 black omni condenser element
  • RPW170 capsule head with KSM8 silver Dualdyne cardioid dynamic
  • RPW174 capsule head with KSM8 black Dualdyne cardioid dynamic
  • RPW180 capsule head with KSM9 champagne switchable cardioid/supercardioid condenser
  • RPW184 capsule head with KSM9 black switchable cardioid/supercardioid condenser
  • RPW182 capsule head with KSM9HS champagne switchable wide cardioid/
    hypercardioid condenser
  • RPW186 capsule head with KSM9HS black switchable wide cardioid/hypercardioid condenser

EV®

  • RC2-767 – Supercardioid dynamic N/D767a
  • RC2-967 – Supercardioid dynamic N/D967
  • RC2-PL80a – Supercardioid dynamic PL80a
  • RC2-410 – Cardioid condenser RE410
  • RC2-510 – Supercardioid Condenser RE510
  • ND76-RC3 - Wireless head with ND76 dynamic cardioid capsule
  • ND86-RC3 - Wireless head with ND86 dynamic supercardioid capsule
  • ND96-RC3  - Wireless head with ND96 dynamic supercardioid capsule
  • RE420-RC3 - Wireless head with RE420 condenser cardioid capsule
  • RE520-RC3 - Wireless head with RE520 condenser supercardioid capsule

Heil Sound™

  • RC35

Earthworks®

  • WL40V - cardioid condenser element

Audix®

(all Audix capsules require a Sound Tools audix2shure adapter)T363-CA capsule assembly with OM3 dynamic element)

  • T365-CA capsule assembly with OM5 dynamic element
  • T366-CA capsule assembly with OM6 dynamic element
  • T367-CA capsule assembly with OM7 dynamic element

DPA®

  • d:facto II

Neumann®

(all Neumann capsules require an adapter - see below)

  • KK104-S cardioid condenser element (requires Ambient HHA adapter set at 15V)
  • KK105-HD supercardioid condenser element (requires Ambient HHA adapter set at
    15V)
  • KK105-S supercardoid condenser element (requires Ambient HHA adapter set at 15V
  • KK204 cardioid condenser element (requires Lectrosonics HH2SEN adapter)
  • KK205 supercardioid condenser element (requires Lectrosonics HH2SEN adapter)

Sennheiser®

(all Sennheiser capsules require an adapter - see below)

  • MD5235 dynamic cardioid element (requires Ambient HHA adapter)
  • ME5002 omni condenser element (requires Ambient HHA adapter set at 7V)
  • ME5004 cardioid condenser element (requires Ambient HHA adapter set at 7V)
  • E5005 supercardioid condenser element (requires Ambient HHA adapter set at 7V)
  • ME5005-E supercardioid condenser element optimized for live sound applications
    (requires Ambient HHA adapter set at 7V)
  • ME5009 wide cardioid condenser element (requires Ambient HHA adapter set at 7V)
  • MMD835-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MMD845-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MME865-1 supercardioid condenser element (requires Lectrosonics HH2SEN
    adapter)
  • MMD935-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MMD945-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MME965-1 dual pattern condenser element (requires Lectrosonics HH2SEN adapter)

Telefunken®

  • M80 WH
  • M81 WH
Specifications
Capacity Specifications

Operating Frequencies: HHa: Band A1: 470.100 - 537.575 Band B1: 537.600 - 607.950

Compatibility Modes: HHa: Nu Hybrid, IFB, Mode 3 HHa-941, HHa/E07-941: Nu Hybrid, IFB HHa/E01: Nu Hybrid, IFB, Mode 3 HHa/E02: Digital Hybrid Wireless®, IFB, Mode 3, Mode 6 HHa/E06: Hybrid, IFB, Mode 3 HHa/E07: Hybrid, IFB, Mode 3 HHa/X: Hybrid, Mode 3, 200 Mode, 100 Mode, Mode 7, Mode 6, IFB Mode RF Power output: HHa: Selectable 50 or 100 mW HHa-941: Selectable 50 or 100 mW HHa/E01: Selectable 25 or 50 mW HHa/E02: 10 mW HHa/E06: Selectable 50 or 100 mW, EIRP HHa/E07: Selectable 25 or 50 mW HHa/E07-941: Selectable 50 or 100 mW HHa/X: Selectable 50 or 100 mW

Pilot tone: 25 to 32 kHz

Frequency stability: ± 0.002%

Spurious radiation: Compliant with ETSI EN 300 422-1

Operating temperature range: -20° C to +50° C

Input compressor: Dual envelope compressor, >30 dB range

Gain control range: 45 dB; semi-log menu-driven control; 1 dB steps

Modulation indicators: Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation, LCD bar-graph indicator

Frequency response 40 Hz to 20 kHz (+/- 1dB)

Low frequency roll-off: -3 dB @35, 50 and 70 Hz; selectable; 12 dB/octave (varies slightly with selection)

Controls: External: Programmable mute/talkback button Internal control panel: Power, Side Button Setup, MENU/SEL, BACK and Up/Down arrow buttons for menu item

Battery: 2x AA with polarity protection and battery ejector

Battery life: At 100mW: 5.5 hours (Duracell Ultra alkaline) (The HH transmits battery status to Lectrosonics Digital Hybrid Wireless® receivers.)

Capsule Interface: 1.25” opening and 28 thread pitch

Power available: 5V, 25 mA max

Input impedance: 1000 Ohms Weight: 12.1 oz. (343.029 grams) with batteries and HHC capsule

Dimensions: 9.5” long x 1.97” diameter at largest point 241.3 long x 50.038 mm diameter at largest point

Emission Designator: A1: 39K7F3E B1: 57K9F3E /X, -941: 180KF3E /E07-941: 110KF3E

Lectrosonics - HHa Wireless Handheld Microphone

  • $2,109.00
