Wideband UHF tuning range – Available in A1B1 band in the US
Accepts microphone or line level signals
Selectable 5, 15, 48 volt phantom power
Selectable 10/25/50 mW RF output power
Adjustable low frequency roll-off
Powered by two AA batteries
IR (infrared) port for fast setup
Remote controlled “dweedle” tones (audio tone set-up control)
Removeable SMA-mount antenna (required for operation)
Solid machined aluminum housing
On board recording with time code jam sync
Encryption 256 Bit AES, CTR Mode with 4 key policies

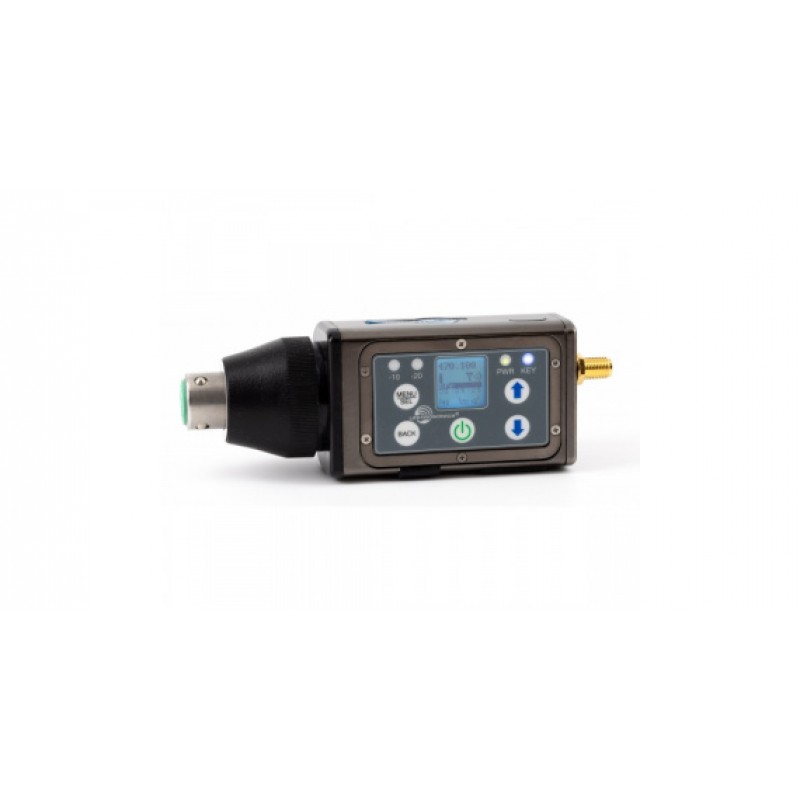

This unique plug-on transmitter design will ideally match any microphone or line level source via a standard XLR connector. The DPR-A can tune in 100 kHz or 25 kHz steps across the UHF television band, with a selectable output power of 10, 25 or 50 mW. The purely digital architecture utilizes AES 256-CTR encryption for high level security applications. The external antenna provides exceptional operating range.

The transmitter is specially designed with high efficiency digital circuitry for extended operating time on two AA batteries, with status indicated by a multi-color LED. An IR (infrared) port is included to simplify setup with IR enabled receivers. Updates can be made via SD card.

The input amplifier uses an ultra low noise op-amp for quiet operation. It is gain controlled with a wide range, dual envelope limiter, providing over 30 dB of headroom above full modulation. A 24-bit A-D converter digitizes the audio, then filters out supersonic noise above 21 kHz.

Included Accessories

PHTRAN3
AA Lithium Batteries

Specifications
Capacity	Specifications Transmitter Operating Frequencies: US: 470.100 - 607.950 MHz Frequency Selection Steps: 25 kHz RF Power output: Selectable 25/50 mW Frequency stability: ± 0.002% Digital modulation: 8PSK Spurious radiation: US: Compliant with ETSI EN 300 422-1 v1.4.2 E01: Compliant with ETSI EN 300 422-1 v2.1.2 Equivalent input noise: –125 dBV (A-weighted) Input level: Nominal 2 mV to 300 mV, before limiting Greater than 1V maximum, with limiting Input impedance: 1K Ohm Input limiter: Dual envelope type; 30 dB range Gain control range: 55 dB in 1 dB steps; digital control Modulation indicators: • Dual bi-color LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation • LCD bar graph Encryption: AES 256-CTR (per FIPS 197 and FIPS 140-2) Audio Performance: Frequency Response: 25 Hz to 20 kHz, (+0, -3dB) Low frequency Roll-off: Adjustable for -3dB @ 25, 35, 50, 70, 100, 120 and 150 Hz Input Dynamic Range: 110 dB (A), before limiting 125 dB (with full Tx limiting) Controls & Indicators: • LCD w/membrane switches • LED audio level indicators Audio Input Jack: Standard 3-pin XLR (female) Phantom Power: 5V @ 18 mA max., 15V @ 15 mA max. and 48 V @ 4 mA max., plus “OFF” IR (infrared) port: For quick setup by transferring settings from an IR enabled receiver Antenna: Housing and attached microphone form the antenna. Battery: Two 1.5 Volt AA (lithium recommended) Battery Life: AA Lithium, 48v phantom power engaged: • SCHOEPS CMIT 5U: 7h 25m • SCHOEPS CMC6-U/MK41: 7h 20m • SANKEN CS-1: 8h 0m Weight: 7.8 ozs. (221 grams) Dimensions: 4.21” L [excluding antenna: DPR-A] x 1.62” W x 1.38” H (106.9 L x 41.1W x 35.0 H mm) Emission Designator: 170KG1E Recorder Specifications Recorder Storage media: microSDHC memory card (HC Type) File format: .wav files (BWF) A/D converter: 24-bit Sampling rate: 48 kHz Recording modes/Bit rate: HD mono: 24 bit - 144 kb/s Input: Type: Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones Input level: • Dynamic mic: 0.5 mV to 50 mV • Electret mic: Nominal 2 mV to 300 mV • Line level: 17 mV to 1.7 V Timecode: Connector: 3.5 mm TRS Signal voltage: 0.5 Vp-p to 5 Vp-p Input impedance: 10 k Ohms Accuracy <1 PPM with TCXO Format: SMPTE 12M - 1999 compliant Audio Performance: Frequency response: 25 Hz to 20 kHz; +0.5/-1.5 dB Dynamic range: 110 dB (A), before limiting 125 dB (with full Tx limiting) Distortion: < 0.035% Operating temperature range: Celsius: -20 to 50 Fahrenheit: -5 to 122

Specifications

Capacity

Specifications

Transmitter Operating Frequencies: US: 470.100 - 607.950 MHz

Frequency Selection Steps: 25 kHz

RF Power output: Selectable 25/50 mW

Frequency stability: ± 0.002%

Digital modulation: 8PSK

Spurious radiation: US: Compliant with ETSI EN 300 422-1 v1.4.2 E01: Compliant with ETSI EN 300 422-1 v2.1.2

Equivalent input noise: –125 dBV (A-weighted)

Input level: Nominal 2 mV to 300 mV, before limiting Greater than 1V maximum, with limiting

Input impedance: 1K Ohm

Input limiter: Dual envelope type; 30 dB range

Gain control range: 55 dB in 1 dB steps; digital control

Modulation indicators: • Dual bi-color LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation • LCD bar graph Encryption: AES 256-CTR (per FIPS 197 and FIPS 140-2)

Audio Performance: Frequency Response: 25 Hz to 20 kHz, (+0, -3dB) Low frequency Roll-off: Adjustable for -3dB @ 25, 35, 50, 70, 100, 120 and 150 Hz Input Dynamic Range: 110 dB (A), before limiting 125 dB (with full Tx limiting)

Controls & Indicators: • LCD w/membrane switches • LED audio level indicators

Audio Input Jack: Standard 3-pin XLR (female)

Phantom Power: 5V @ 18 mA max., 15V @ 15 mA max. and 48 V @ 4 mA max., plus “OFF”

IR (infrared) port: For quick setup by transferring settings from an IR enabled receiver

Antenna: Housing and attached microphone form the antenna.

Battery: Two 1.5 Volt AA (lithium recommended)

Battery Life: AA Lithium, 48v phantom power engaged: • SCHOEPS CMIT 5U: 7h 25m • SCHOEPS CMC6-U/MK41: 7h 20m • SANKEN CS-1: 8h 0m Weight: 7.8 ozs. (221 grams)

Dimensions: 4.21” L [excluding antenna: DPR-A] x 1.62” W x 1.38” H (106.9 L x 41.1W x 35.0 H mm)

Emission Designator: 170KG1E

Recorder Specifications

Recorder Storage media: microSDHC memory card (HC Type)

File format: .wav files (BWF) A/D converter: 24-bit Sampling rate: 48 kHz

Recording modes/Bit rate: HD mono: 24 bit - 144 kb/s

Input: Type: Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones

Input level: • Dynamic mic: 0.5 mV to 50 mV • Electret mic: Nominal 2 mV to 300 mV • Line level: 17 mV to 1.7 V

Timecode: Connector: 3.5 mm

TRS Signal voltage: 0.5 Vp-p to 5 Vp-p

Input impedance: 10 k Ohms Accuracy <1 PPM with TCXO Format: SMPTE 12M - 1999 compliant

Audio Performance: Frequency response: 25 Hz to 20 kHz; +0.5/-1.5 dB

Dynamic range: 110 dB (A), before limiting 125 dB (with full Tx limiting)

Distortion: < 0.035%

Operating temperature range: Celsius: -20 to 50 Fahrenheit: -5 to 122
