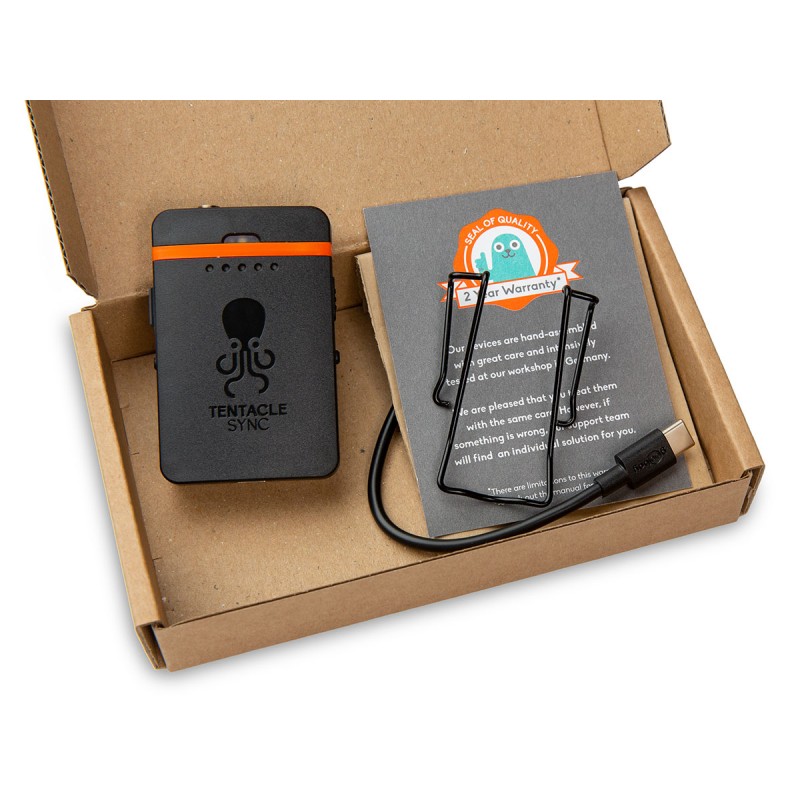

*This only contains the Track E, and does not include any accessories or the lavalier microphone.

The Tentacle Track E Pocket Audio Recorder is a perfect device for on-the-go recording with its ability to record 24-Bit & 32-Bit Float audio, avoiding clipping and distortion. Newly added to the Track E is the ability to output timecode, and the Bluetooth connectivity allows for easy remote monitoring, recording, and syncing thanks to the Tentacle app (available on iOS & Android devices).

FEATURES

  • 32-bit float recording & 24-bit recording
  • Control Multiple Devices via Bluetooth (iOS & Android)
  • Wireless Timecode Sync / Jam-Sync via Cable
  • Timecode In/Out
  • Up to 10 Hours Operating Time
  • General Purpose Lavalier Microphone with Clip & Windjammer included
  • 16GB microSD card included
  • Belt Clip made of Black Powder-Coated Stainless Steel
  • 2 Year Limited Warranty
  • Designed & Manufactured in Germany
Specifications
Capacity Recording

Recording Tracks - 1 mono
Sampling Rate - 48kHz
Recording Bit-Depth - 32-bit float / 24 bit
File Formats - WAV (BWF)
Recording Time - 30 hrs (24-bit) / 23 hrs (32-bit) with 16GB card
Storage Media - microSDHC Card up to 32 GB (Recommended Class 10)
Signal Processing - Low Cut Filter, Limiter (24-bit only)
Connectivity

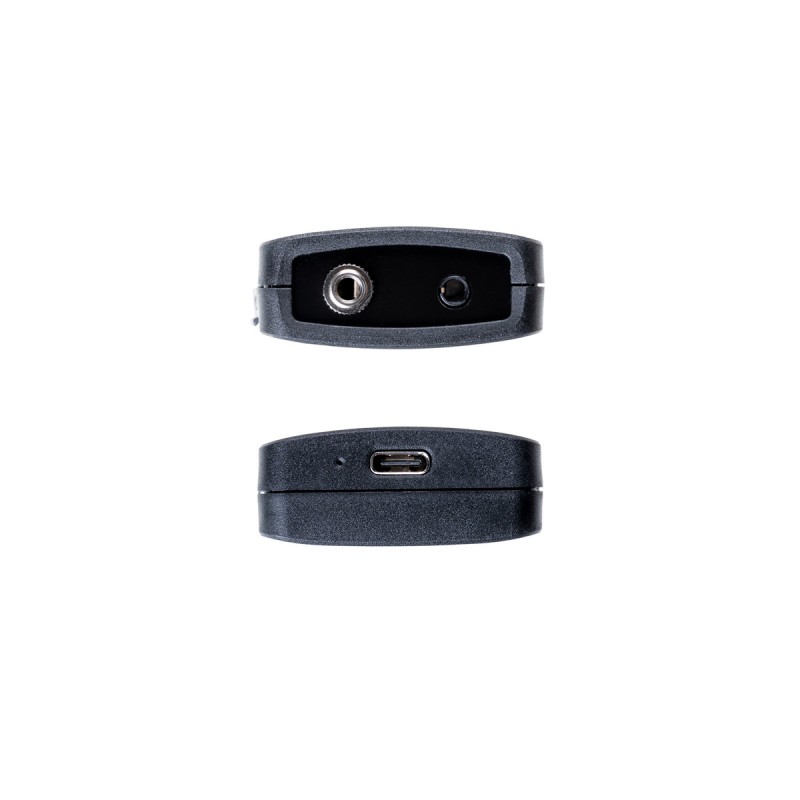

Microphone Input - 3.5 mm Jack (lockable)
Microphone Plug-In Power - 5V (Switchable)
Headphone Output - 3.5 mm Jack (dual mono)

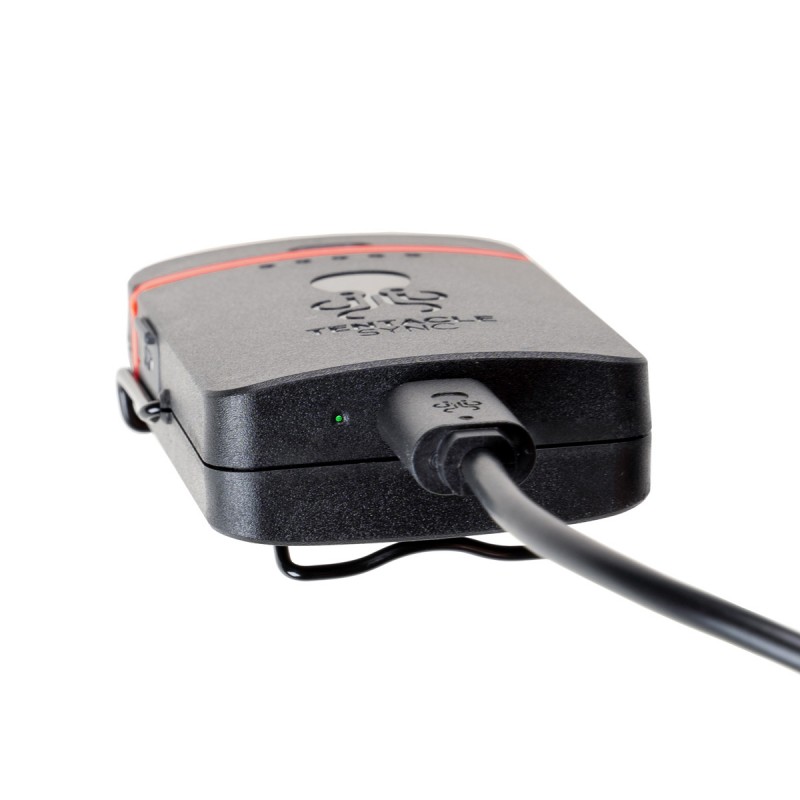

USB Connection - USB-C (USB 2.0)
USB Modes - Charging, Card Reader, Firmware Updates
Performance

Frequency Response - 20 Hz - 20 kHz
Gain Range - +6 to +46 dB
Dynamic Range - 100 dB typ
THD+N - ≤ -85 dB (0.05%)
Control & Synchronization

Bluetooth - 5 (Low Energy)
Remote Control & Monitoring - Tentacle Setup App (iOS/Android)
Synchronization - Via Bluetooth or Jam-Sync via Cable
Timecode Input - LTC via Microphone Input
Timecode Output - N/A
Frame Rates - SMPTE 12M 23.98 - 30FPS
Power

Power Source - Built-In Rechargeable Lithium Polymer Battery
Battery Capacity - 900 mAh
Battery Operating Time - Up to 10 Hours
Battery Charging Time - max. 2 Hours
Size & Weight

Dimensions - 47mm x 68mm x 19mm / 1.85 in x 2.67 in x 0.74 in
Weight - 58g / 2.0 oz

Tentacle Sync - Tentacle Track E Timecode Audio Recorder

  • $249.00
